âºDIMENSIONS LUMINAIRE // Outer dimension: 85 mm (round) - Hole dimension: 70-75 mm - Construction height/thickness of the frame: approx. 2 mm - Pure material installation depth of the luminaire: approx. 35 mm - Required cavity (without ceiling thickness) for the transformer: approx. 30 mm - Required total installation depth (lower edge of the ceiling to the end of the luminaire
in the cavity) depends on the ceiling thickness, with standard 12.5 mm Rigips, for example: 40 mm. DIMENSIONS TRAFO: 103 mm (L) x 38 mm (W) x 25 mm (H)

âºDATALUMINAIRE // Power: consumption of 10W with 640 lumens of power, equivalent to about 70W compared to high-voltage halogen - beam angle: 90 ° - light color: warm white (3000k) - life: about 30,000 hours - DIMMBAR - illuminant NOT EXCHANGEABLE! - CE Mark of conformity - Protection class IP20 - Material:
aluminum (frame) and polycarbonate (shielding for reduced glare)

âºIf something is to be illuminated particularly well - this LED illuminant does it with flying colors and fits well in any place due to the simple design. Due to the mounting with clamping springs, the installation in hollow ceilings is very simple. The enclosed transformer is connected to the lamp by plug and requires only a direct connection to 230V. A large beam angle of approx. 90° rounds off the advantages of this LED luminaire.

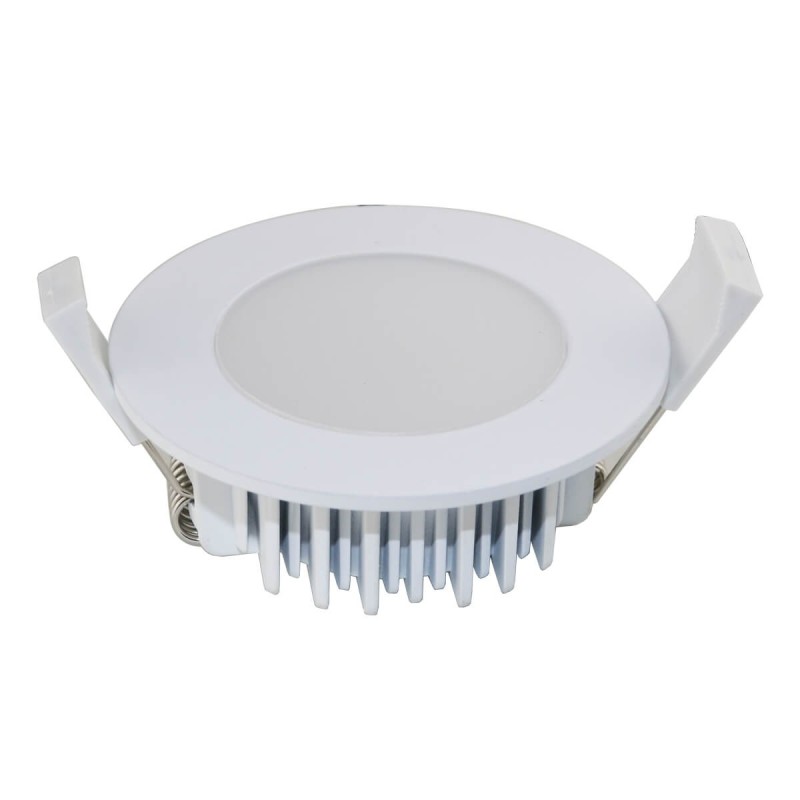

âºThis dimmable VBLED LED recessed spotlight is made for installation locations where only a small installation depth is available, but still a lot of light is needed.

âºModern, extra flat and powerful 230V recessed spot

âºCompatibleboth leading edge and trailing edge dimmer.
