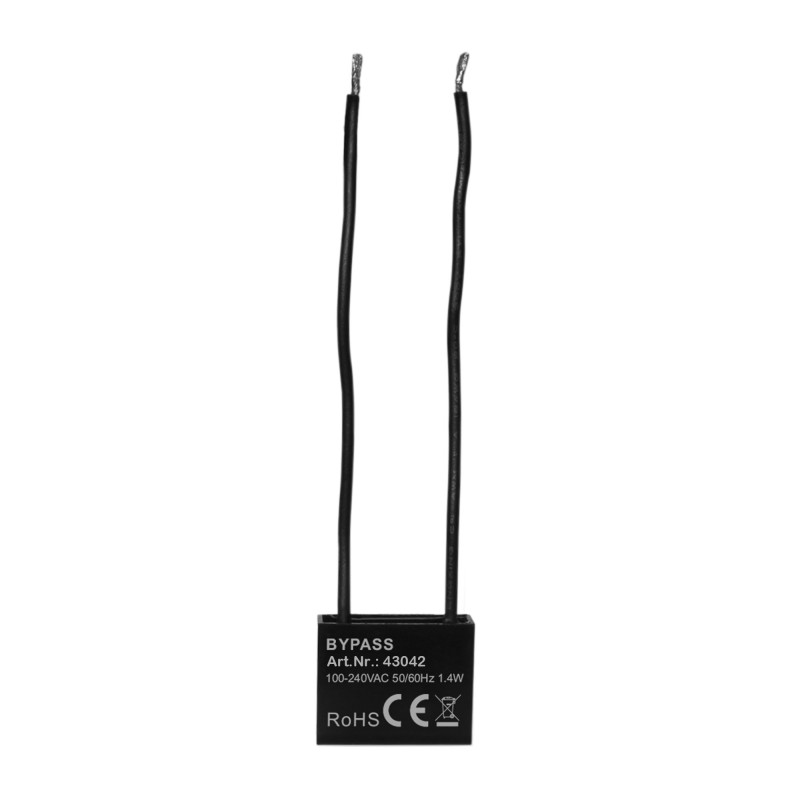

LED Dimmer By Pass Compensation Module

The bypass is a device designed to work with the Micro Smart Dimmer. It should be used when you
LED lamps or energy-saving compact fluorescent lamps. The bypass prevents the flickering of LED lamps and the
prevents the glowing of the switched off compact fluorescent lamps. In the case of a 2-wire connection, the
bypass allows to reduce the minimum power of the load that the dimmer needs for correct operation. The bypass allows feeding the
of the dimmer when controlling small loads with a minimum power up to 3 W (for cosÏ>0.5).

Compensation module LED, rated voltage: AC 230/240 V ~, mains frequency: 50/60 Hz, power dissipation: maximum 1.4 W, cable length: approx. 140 mm,
housing temperature: maximum 65 °C, dimensions (W x H x D): 25 x 20 x 10 mm,

Only compatible with LED dimmer part number 43022
